Rigmaster APU System

Stand-alone truck mounted APU/generator system

Financing Available!

RigMaster Power is a complete, stand-alone generator set that runs all night on what your idling truck engine burns in two hours.

One hour of idling equals 100 miles of highway driving. Over a period of time, prolonged idling can waste thousands of gallons of diesel fuel per year and needlessly increase the wear and tear on your truck's engine and related components. In addition, the EPA is making more restrictions and laws to prevent prolong truck engine idling, which leads to costly fines and tickets for idling a truck.

RigMaster Power is the ideal solution. It's a compact stand-alone system which not only reduces your truck's fuel and operating costs, but also provides 110 volt "house current", a 60 amp DC alternator to charge your truck's batteries and an automatic climate control system with convenient controls in the cab.

Diagram of system installed

Specifications

RIGMASTER POWER GENERATOR FEATURES
HEATER - 13,500 BTU DRAW: 16 Amps @ High Speed
AIR CONDITIONER - 20,000 BTU DRAW: 11 Amps @ High Speed
ELECTRICAL POWER - (2) 110 volt, 25 Amperes, "house current" receptacles.
POWERS ENGINE BLOCK HEATER
COMPACT STAND-ALONE SYSTEM
ALTERNATOR - 60 amp DC, CHARGES BATTERIES
ENGINE - A water-cooled, 2 cylinder 14 horsepower, Perkins or Cat diesel engine.
RATED - 6kw
DIMENSIONS
MAIN UNIT mounts securely on the rail
WIDTH	27"
HEIGHT	27"
DEPTH	30" overall, (22" off rail)
WEIGHT	386 lbs.
BUNK HEATER/AC UNIT mounts inside the bunk
WIDTH	14"
HEIGHT	9 1/4"
DEPTH	9 1/4"
AIR FLOW	278 cfm

Rigmaster Components

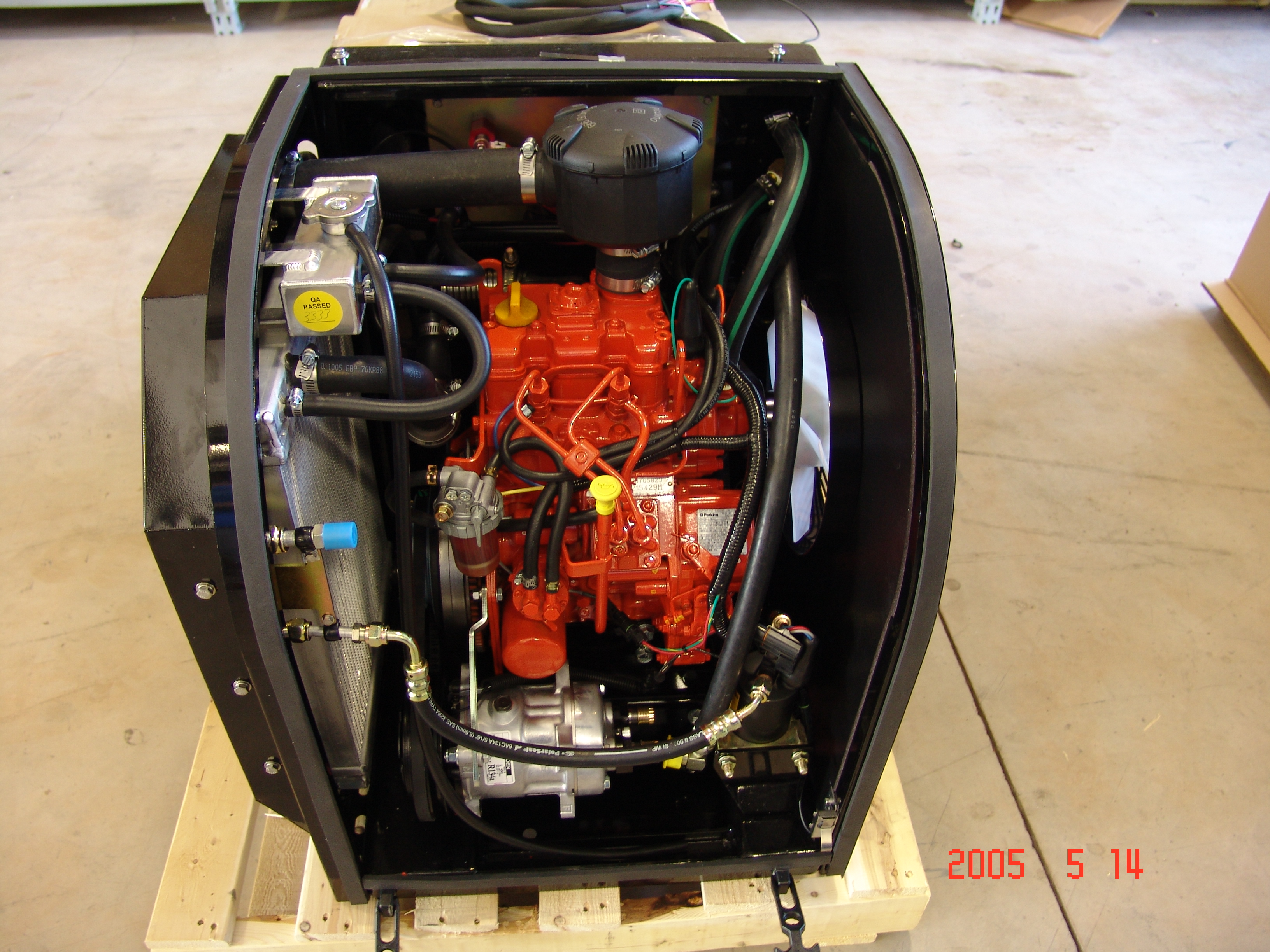

Rigmaster main unit

shown with cover off

Perkins engine

Rigmaster main unit

shown with cover on

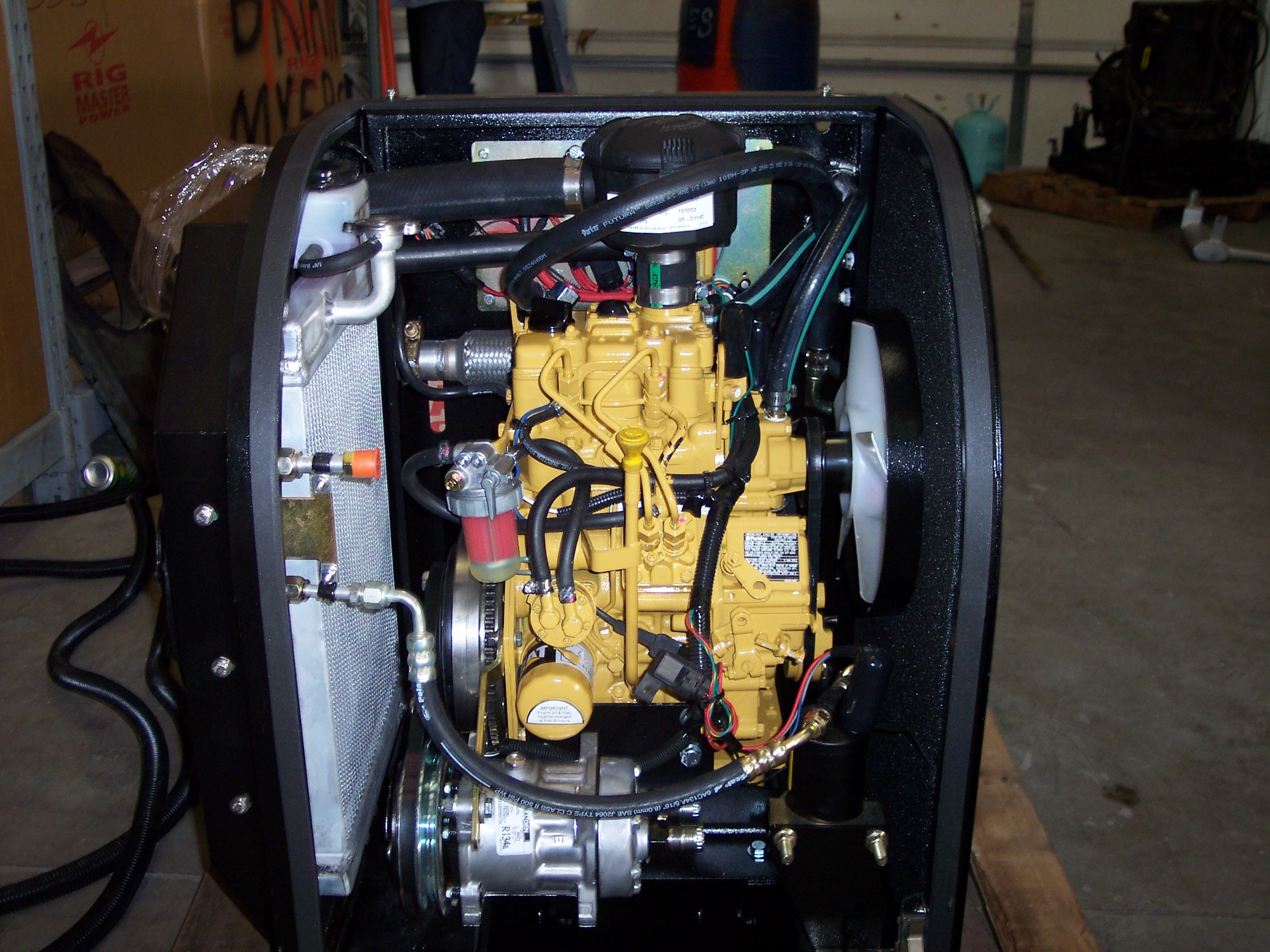

Rigmaster main unit

shown with cover off

Cat engine option

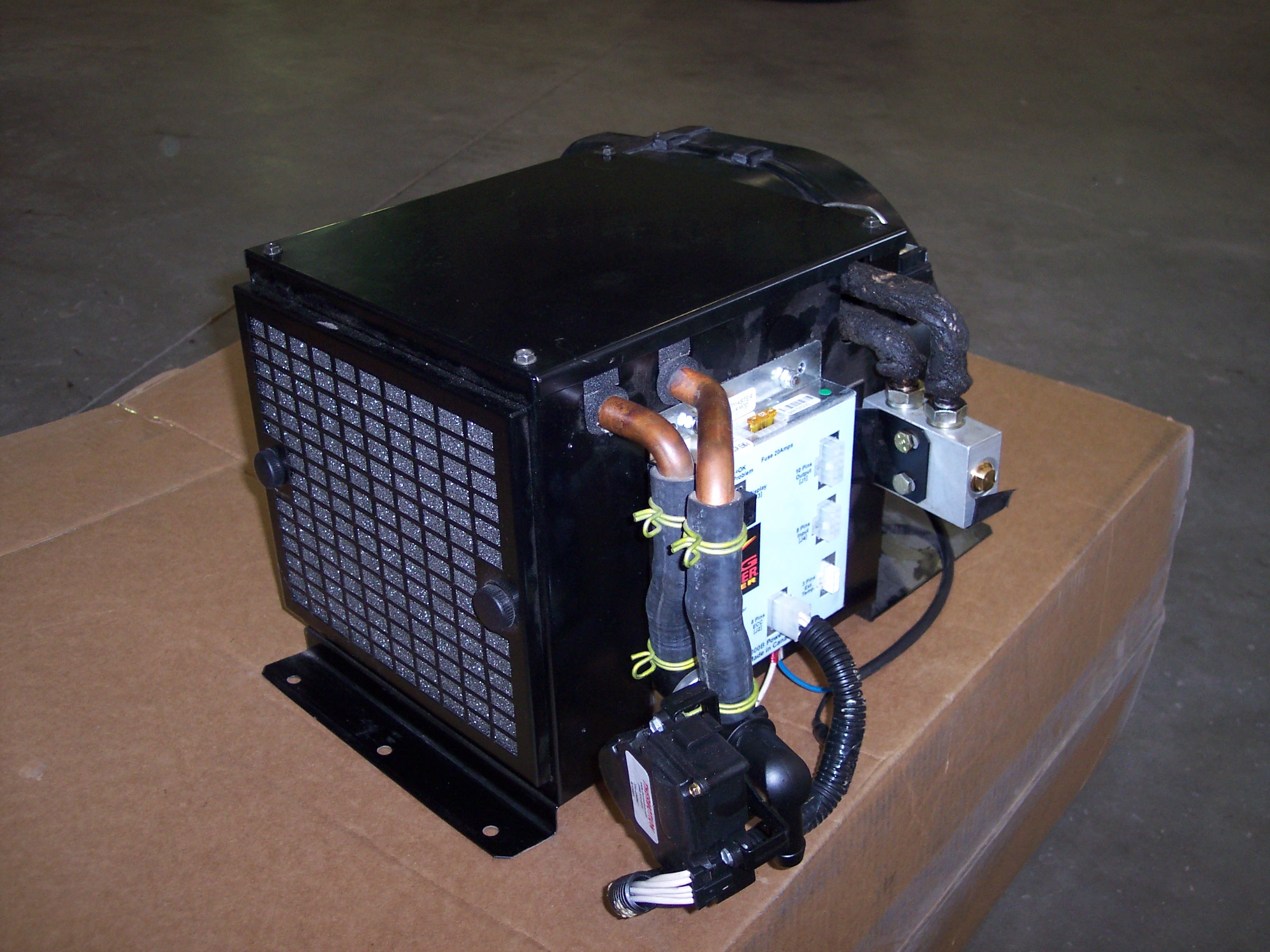

Heat and air box

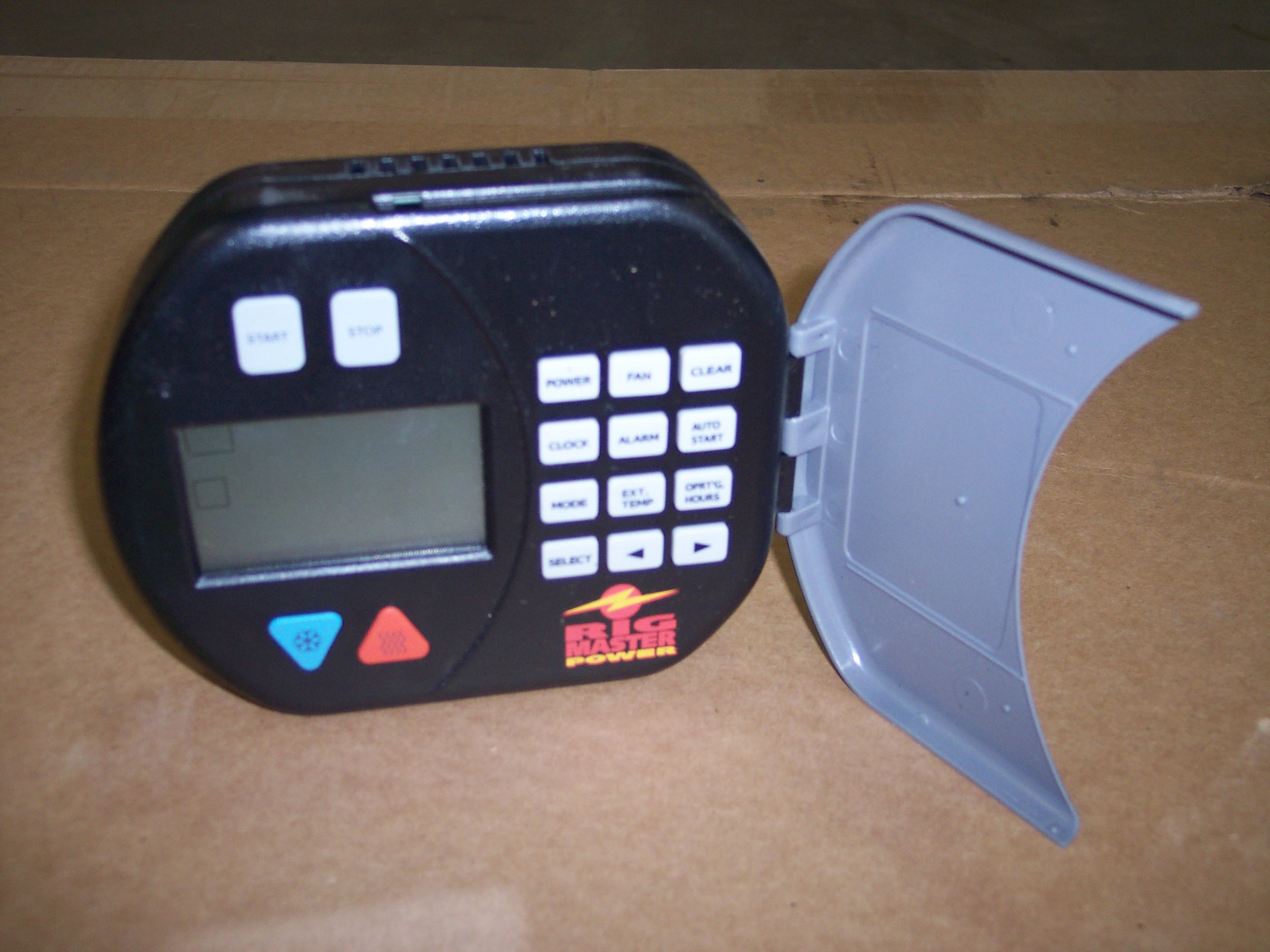

Control panel

opened

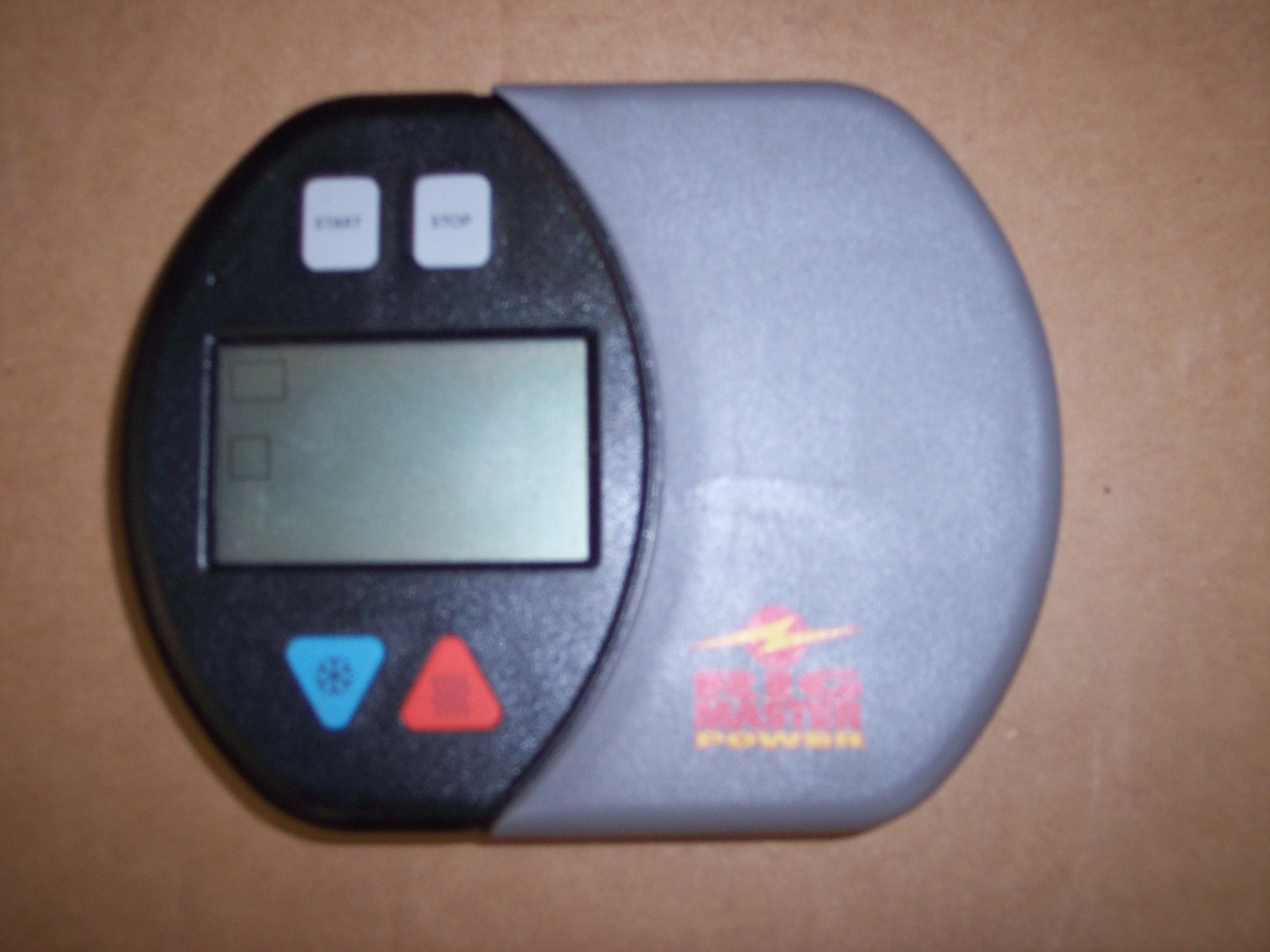

Control panel

closed

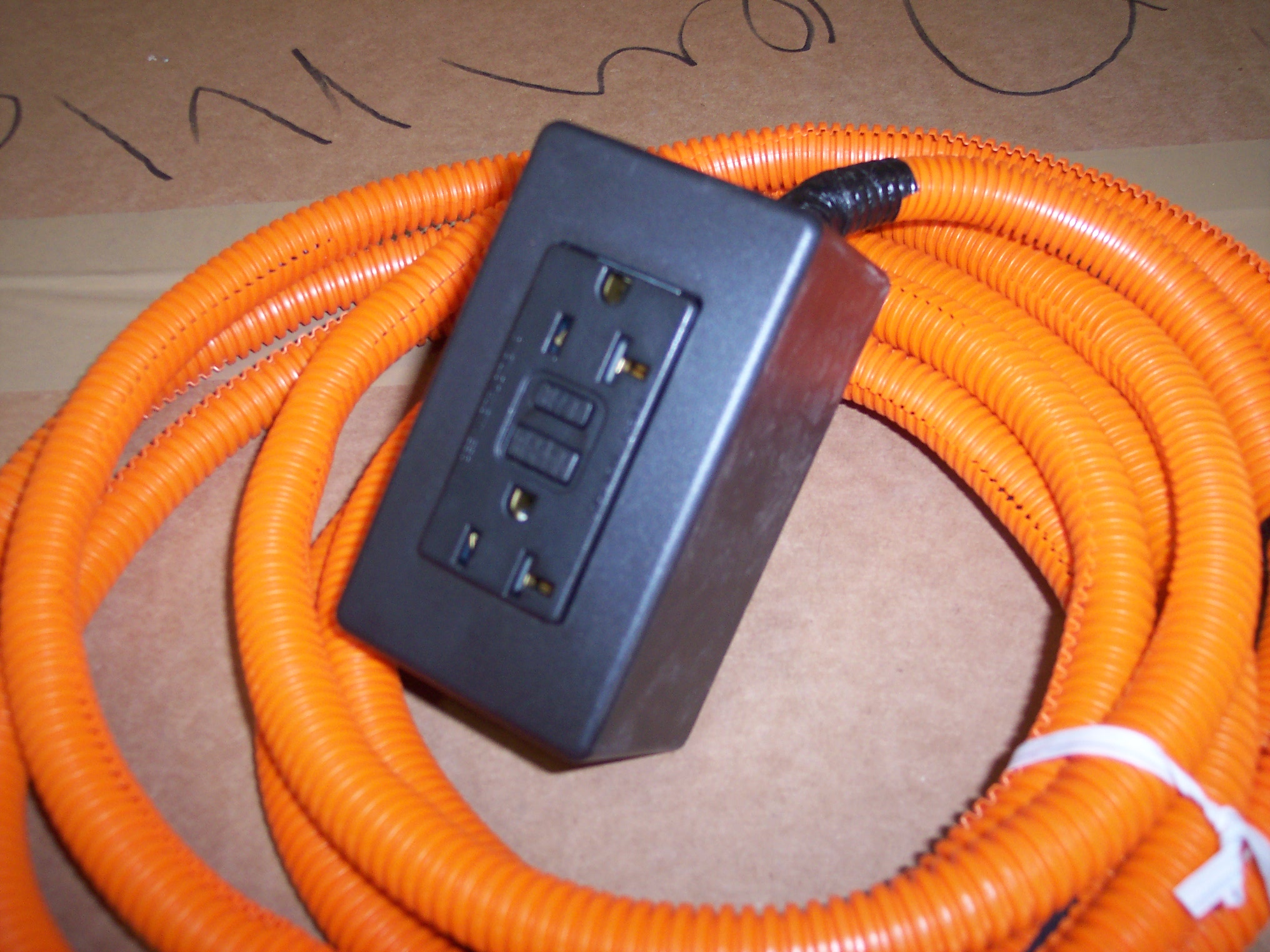

Recepticle box

mounts inside truck

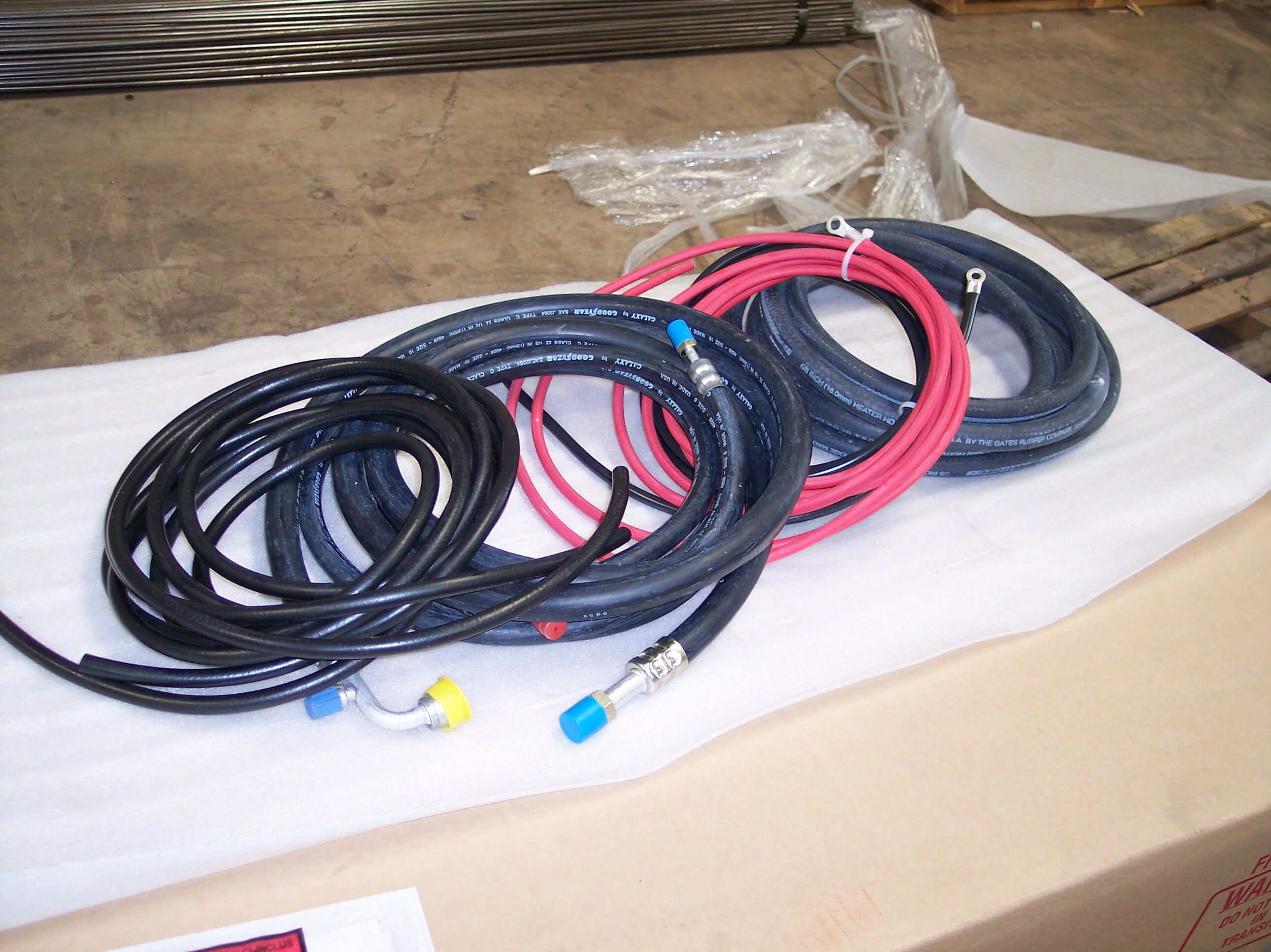

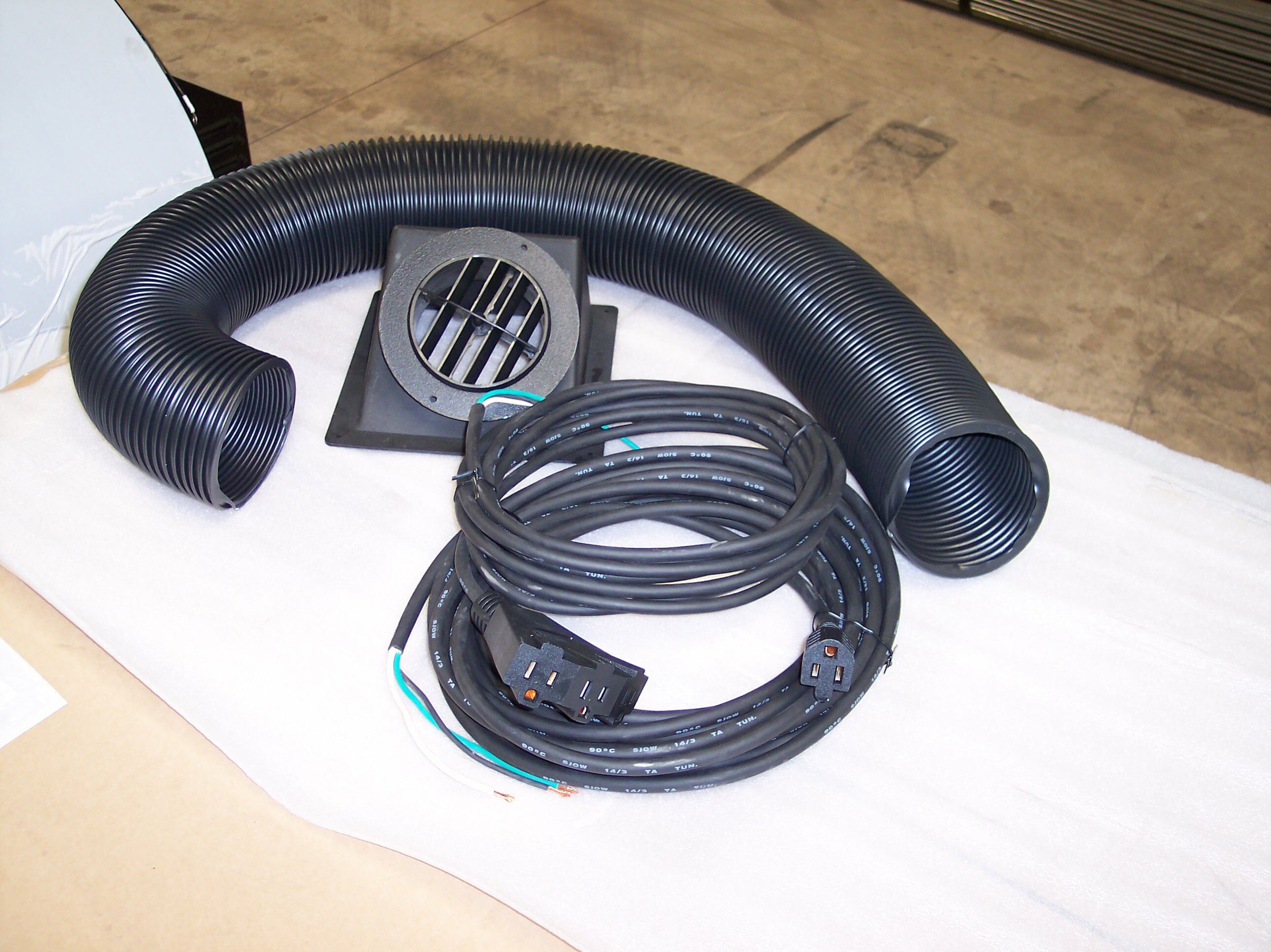

Hose and cable

Kit

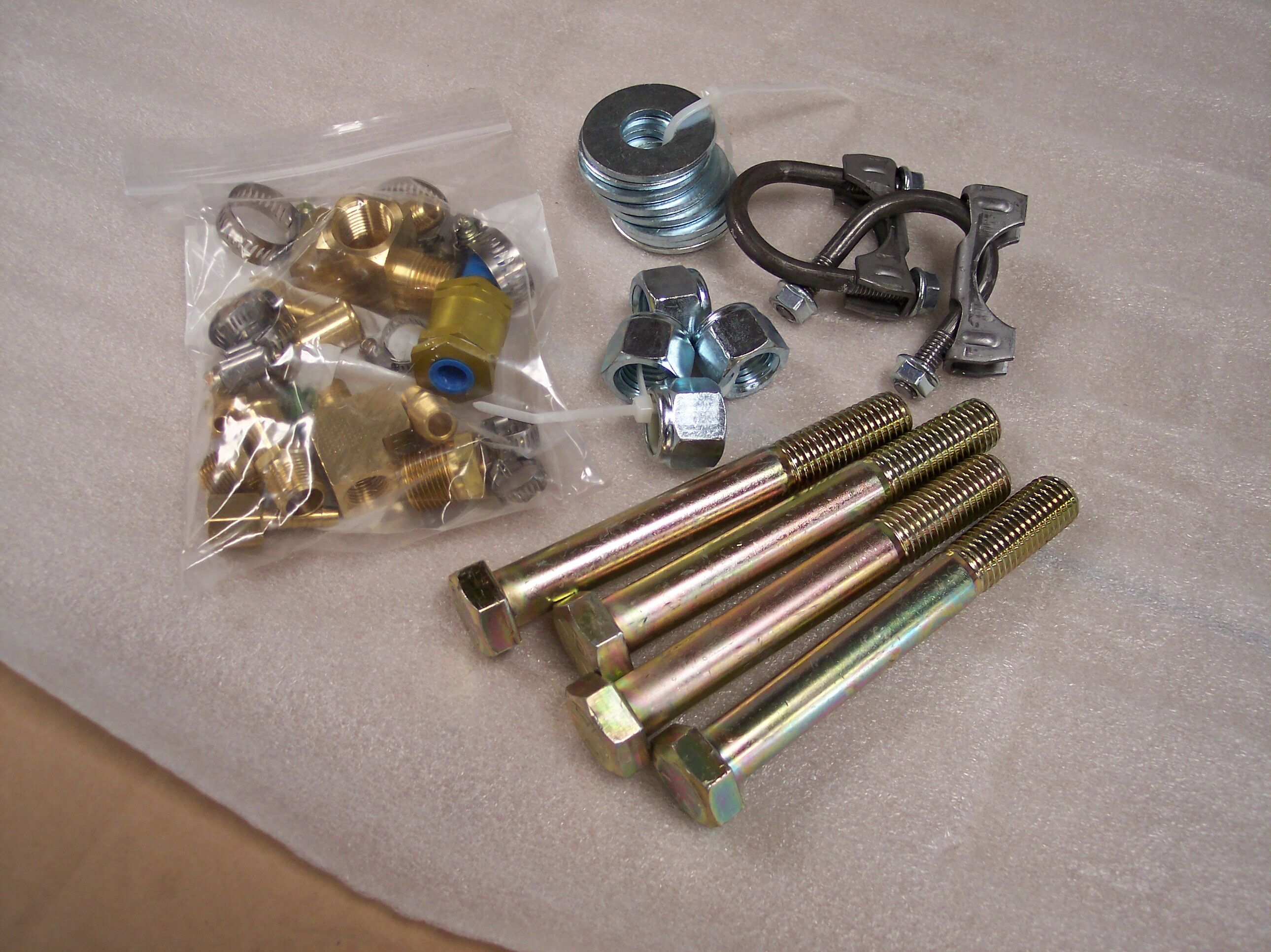

Hardware kit

Hardware Kit

RIGMASTER OVERVIEW

Saves enough fuel to pay for itself in a year

Reduces the high cost of excessive engine wear due to prolonged idling

Stand-alone system does not share the truck's coolant or freon system and will not affect your OEM truck warranty

Reduces pollution , protects the environment and complies with anti-idling laws

Automatic climate control provides heat and/or air conditioning without any adjustments.

Powered by a water-cooled 2-cylinder diesel engine, which has its own radiator running independently of the truck's existing system

Extremely efficient and quiet using a special dome-shaped cover designed to "seal in" noise

Powers the engine block heater and provides convenient 110 volt house electrical current for appliances and power tools
60 amp DC alternator charges the truck's batteries and runs marker lights

Big Rig's exculsive add on options for the Rigmaster

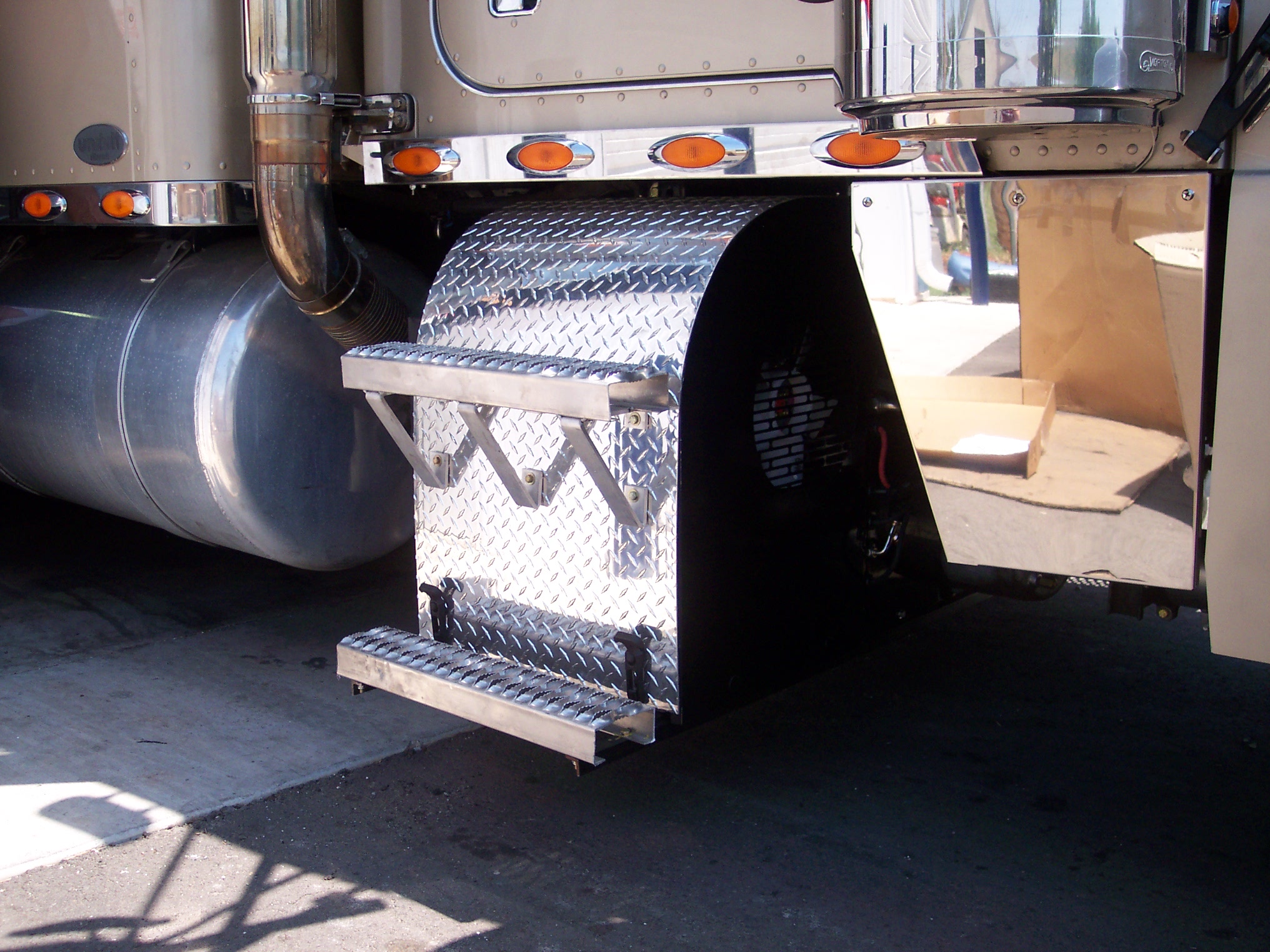

Step Kit

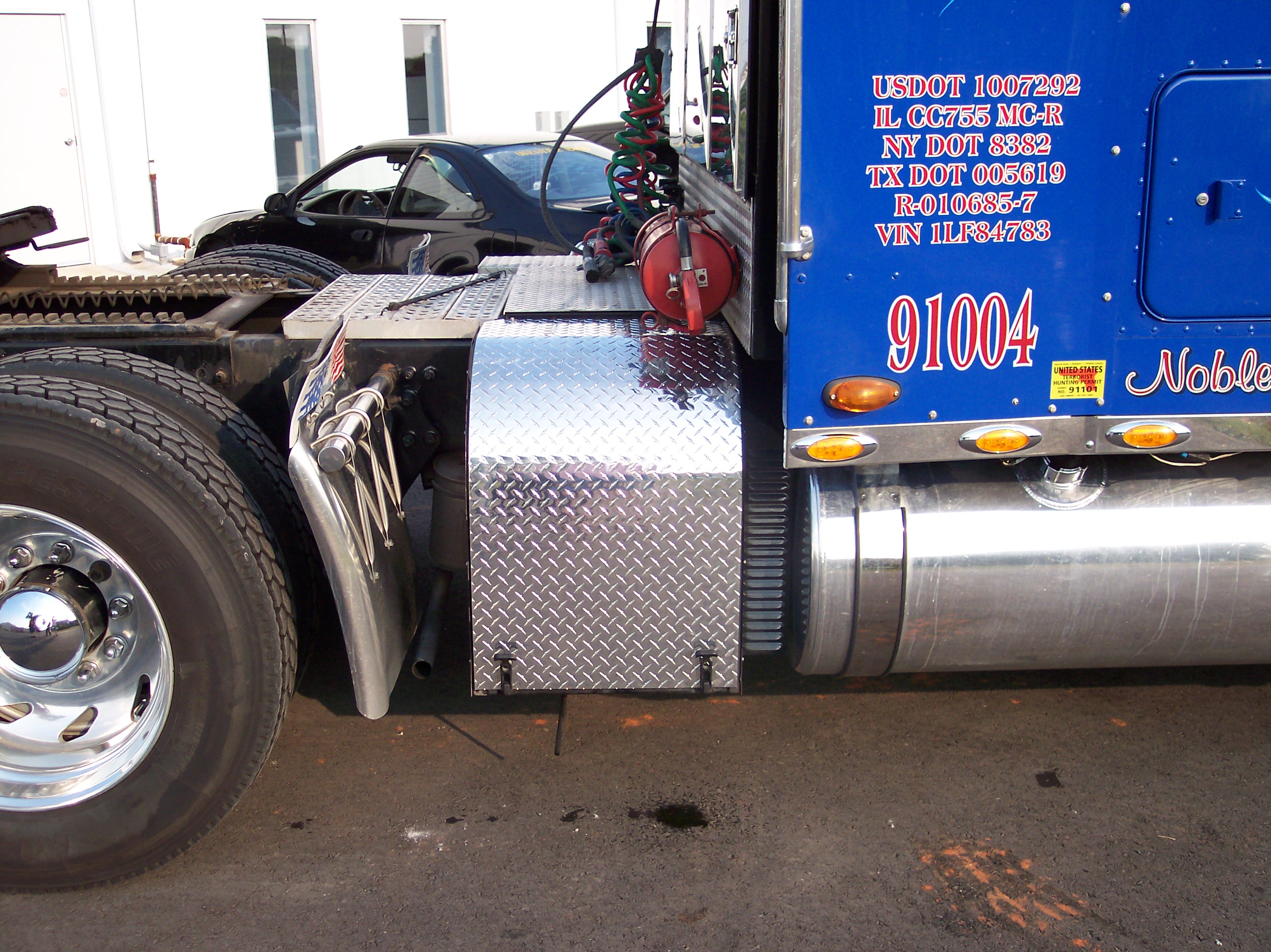

Diamond Tread

Aluminum Cover

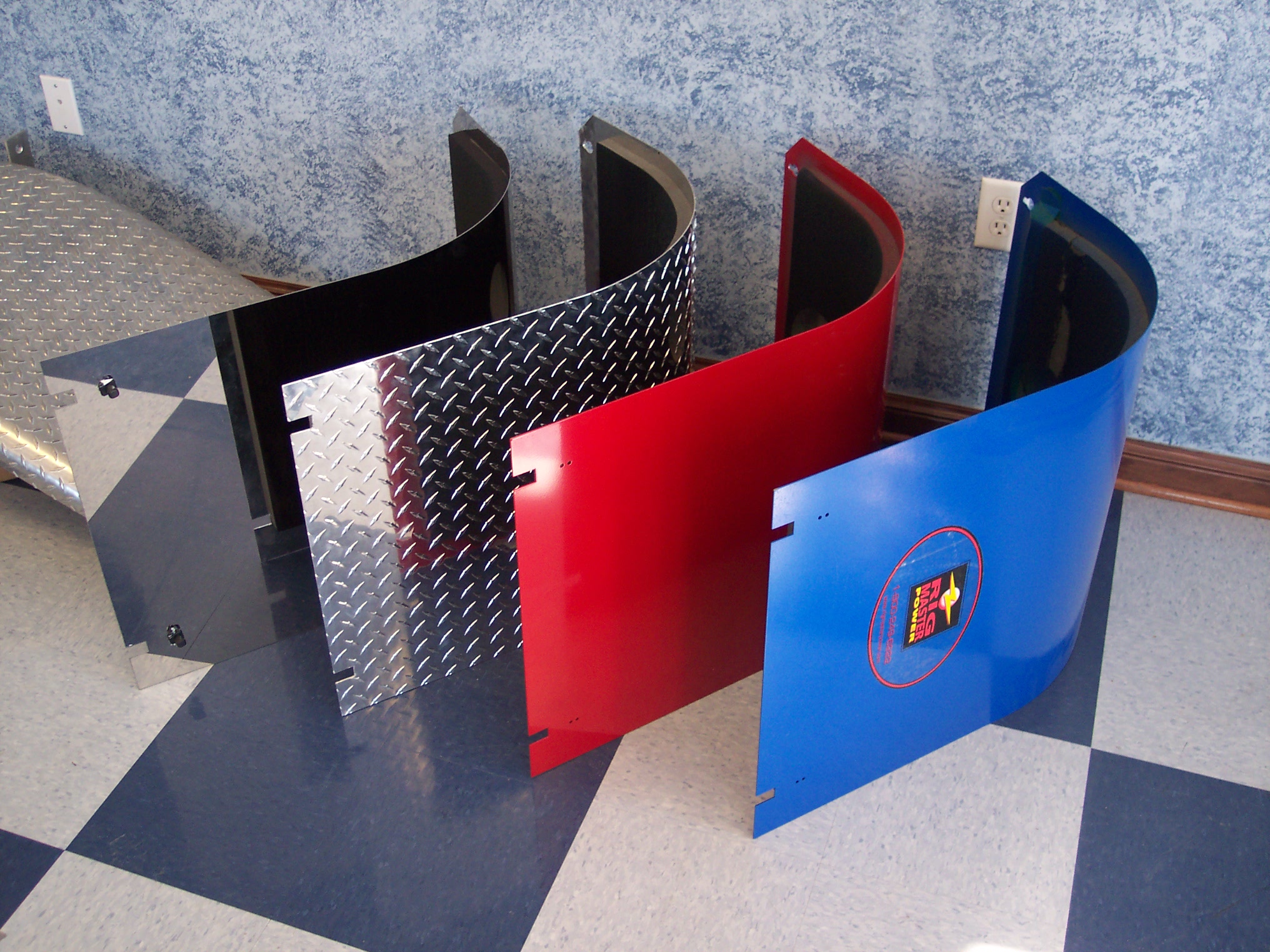

Custom Powder Coated

Color Cover

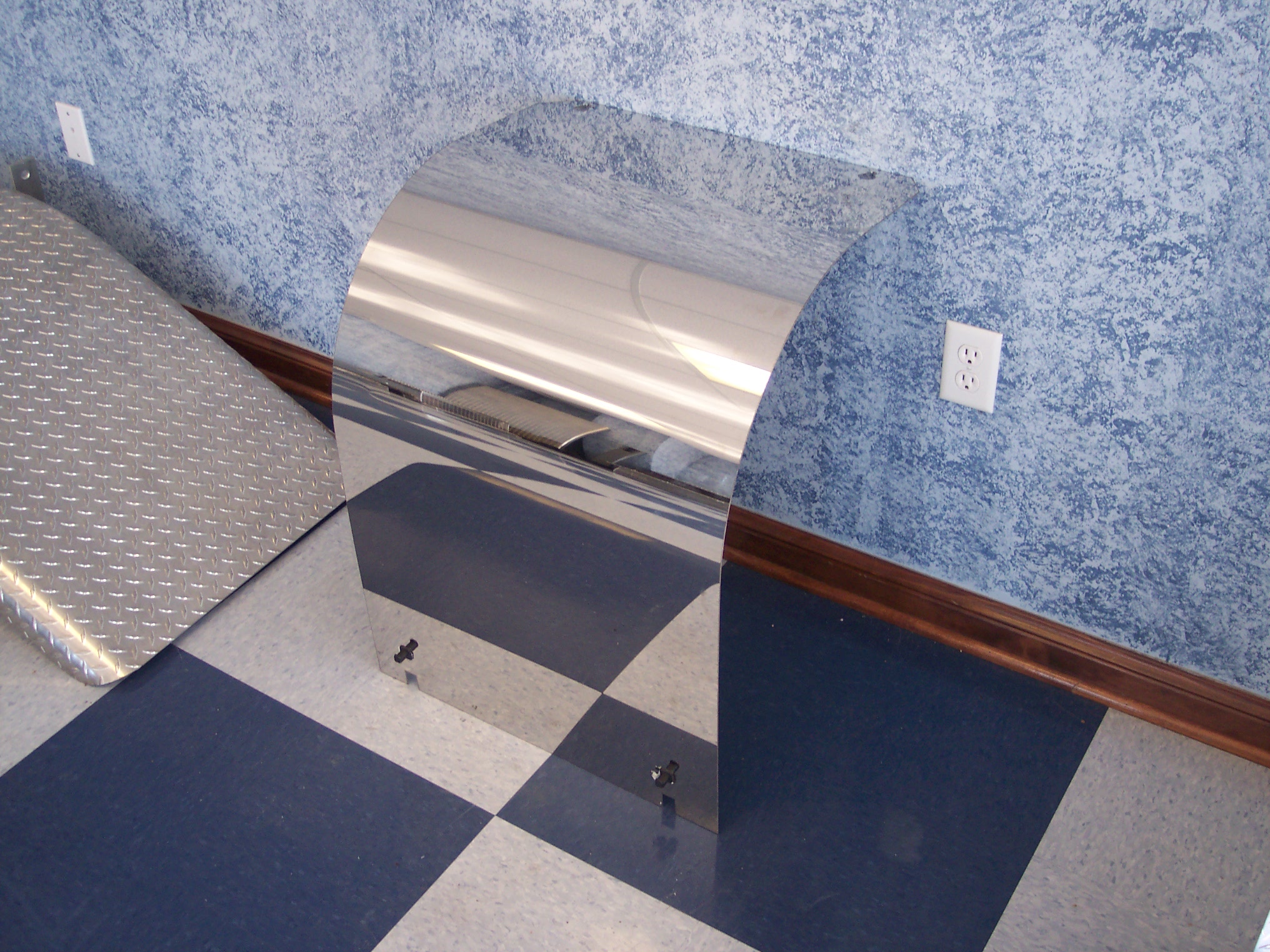

Stainless Steel

Mirror Finish

Cover

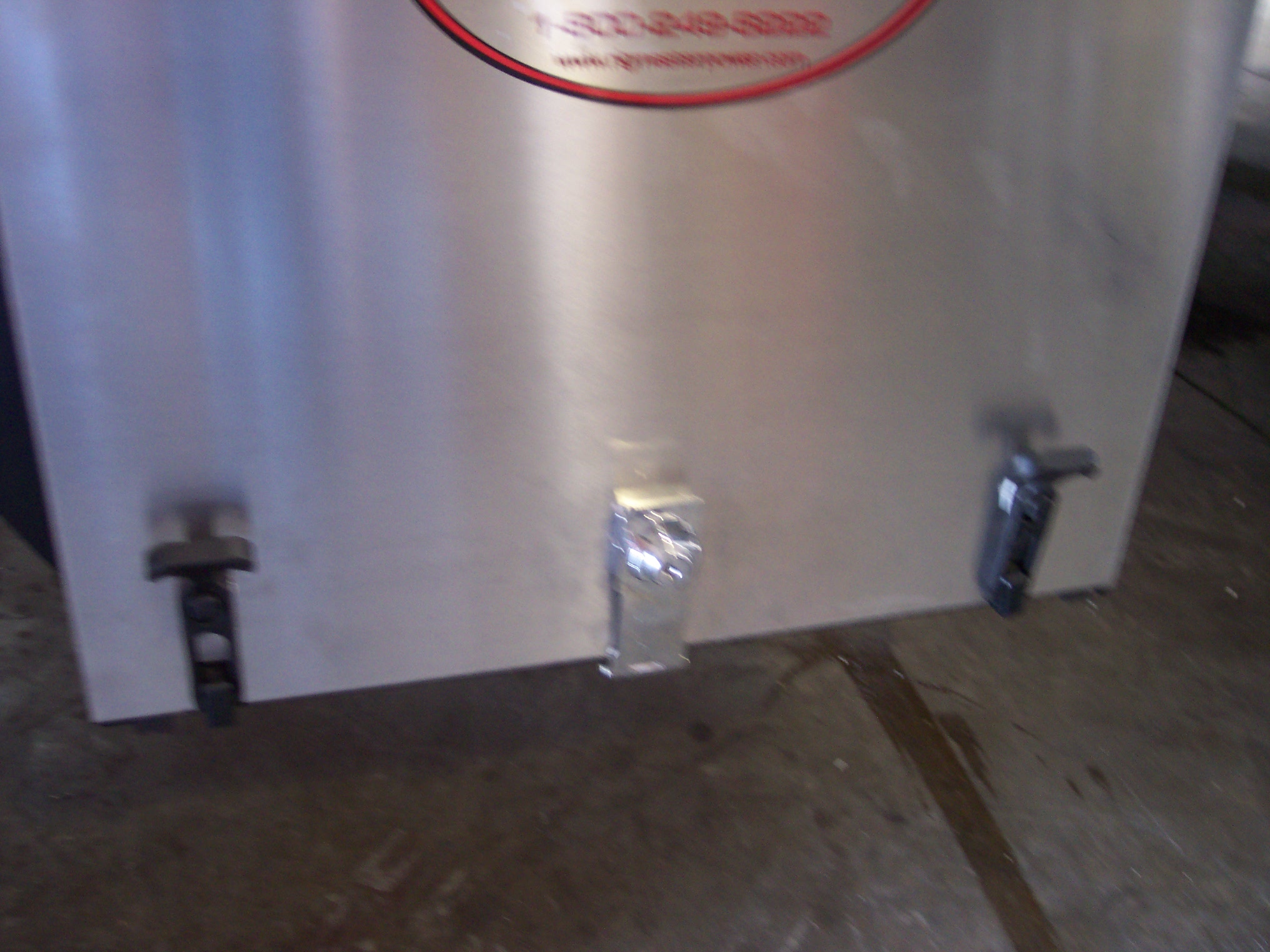

Chrome Lock

for Rigmaster Cover
